Longspan Shelving - Additional Levels


Add to your existing Longspan Shelving Bays with these Additional Levels. The additional longspan levels or shelves can be added at 50mm height increments so you can store more products within your shelving system and increase storage capacity

How do I configure my Longspan Shelving Additional Levels?

Your first shelf level can be installed up high to allow pallet storage on the ground floor (NOTE you cannot store pallets on the shelving and we recommend bolting to the floor if you intend to store pallets on the floor).

Each shelf level can be adjusted at 50mm level increments with the maximum height to first beam level, giving you ultimate flexibility.

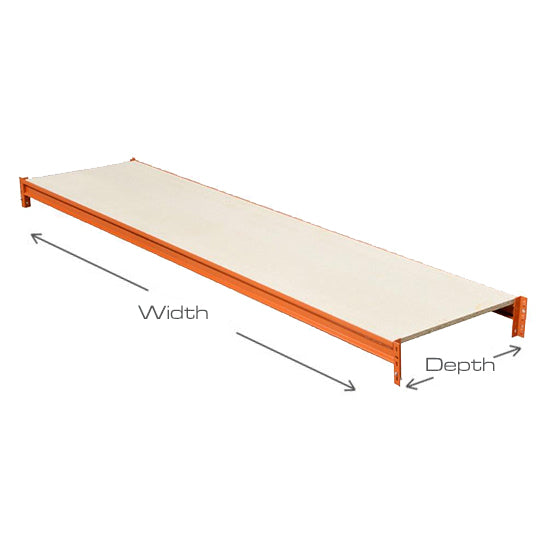

  • Width: 1150mm, 1850mm or 2400mm
  • Height: 2000mm or 2500mm
  • Depth: 600mm or 900mm
  • Each level can hold 360kgs UDL (1150mm wide), 320kgs UDL (1850mm wide) or 300kgs UDL (2400mm wide).
  • Includes two beams, 18mm chipboard shelves and supports
  • Includes 18mm chipboard shelves and supports
  • Arrange shelves at 50mm height increments
  • Powder coated finish

What can I use Longspan Shelving Additional Levels for?

Longspan shelving can be used in any industrial, warehouse, factory or garage environment, for the storage of just about anything. From boxes, to BDCM1 boxes, totes, archive storage, machinery parts or even fabric. Just ensure your total load on each shelf does not exceed the specified UDL.

If you intend to store fluids, you may wish to consider specifying steel decks as opposed to the standard chipboard decks. Contact us for a quote to change to steel decks

* UDL = Uniformly Distributed Load
